ALFA LAVAL decanter NX14

Descriptions

READY FOR DELIVERY

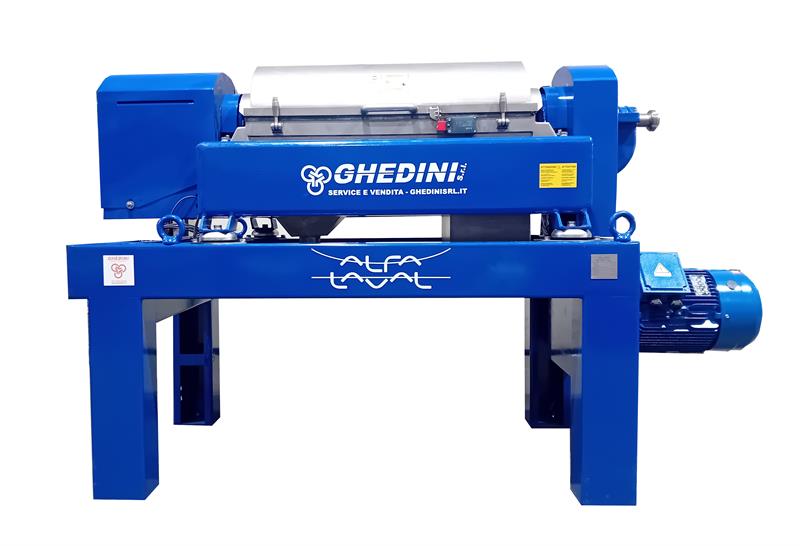

ALFA LAVAL NX14 series 400 Decanter, refurbished and guaranteed, with new electrical control panel.

Technical information:

• Hydraulic capacity up to 6 m³/hr

• Effective capacity depends on product characteristics and required degree of clarification, approx.:

  • 2,500 L/hr seed oils

  • 10–11 q.li olive oil

  • 1,500–2,000 L/hr animal fat

  • 1,400 L/hr plastic recovery

  • 3,000 L/hr plant-based beverages

  • 2,500–3,000 L/hr animal blood

• Bowl diameter: 353 mm

• Bowl length: 888 mm

• Two/three phases (solid/liquid — solid/liquid/liquid); open discharges

• Main motor: 15 kW (inverter)

• Secondary motor: 4 kW (on-off), if required

• Bowl speed: 4000 rpm

• Gearbox: 2.5 kNm, 2-stage, 1:159

• Operator safety device included

• Overload protection device included

• Manual included

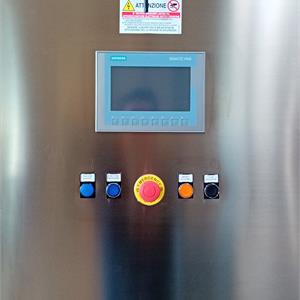

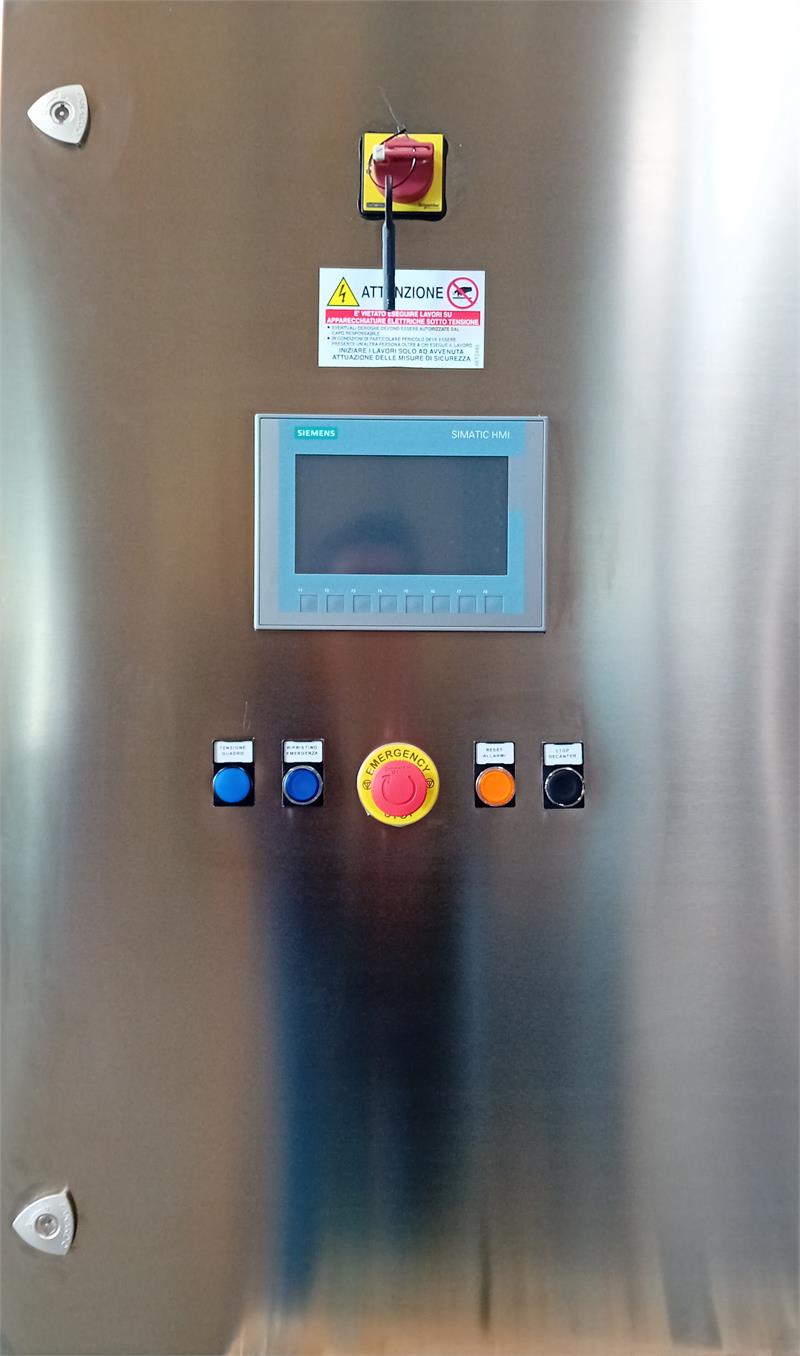

• New electrical control panel with PLC, SIEMENS TOUCHSCREEN, 3F+N+PE 400 V 50 Hz: VFD on the main motor (and self-braking on the secondary, if required)

Approximate Decanter dimensions: 2600 x 1600 x 1600 h mm
Approximate Decanter weight: 1250 kg

Approximate electrical panel dimensions: 100 x 30 x 60 h mm
Approximate electrical panel weight: 80 kg

Application examples:

• Frying oil

• Fruit juices

• Curd from whey

• Seed oil (sunflower)

• Plastic recovery

• Biogas

• Chamomile

• Plant-based beverages

• Sludge

• Olive oil

• Wet animal fat
